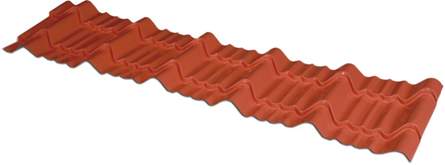

Jai Pali Tile Profile sheets are crafted from high-grade raw materials under expert supervision and tested for superior quality, making them ideal for roofing construction.
Combining the classical aesthetics of traditional architecture with the strength of steel, these sheets offer low maintenance, excellent weather resistance, and long life—perfect for commercial buildings, resorts, farmhouses, hotels, and homes. They are easy to assemble, requiring less skilled labor, and are available in a variety of colors and sizes to meet diverse client needs.
SPECIFICATION:

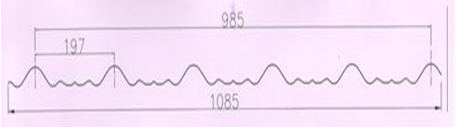

| Trough Depth | 30mm ± 2mm |
| Pitch Centre to Centre | 200mm ± 3mm |
| Supply Width | 1085mm ± 5mm |
| Cover Width | 985mm ± 5mm |
| Thickness | 0.4mm to 0.8mm |
| Material | GI, PPGI, Galvalume, PPGAL |
| Yield Strength | 240mpa, 345mpa, 550mpa |
| Paint Coating | Regular Modified Polyester (RMP), Silicon Modified Polyester (SMP) & PVDF Coating |
| Standard Conformance | AS:2728, AS:1397, IS:14246, IS:513, IS:277 |
KEY FEATURES
- Architecturally Attractive look adds aesthetic look & durability to the building.
- Highly Resistant to fire and to all weather conditions.
- Saves time and labour cost in installation.
- Light, easy to handle and store.
- Does not break, crack or leak for longer time.
- Environment friendly as metallic base.
- Beauty of clay tile is retained along with Strength of Steel with minimum dead weight on the roof.
- Unbeatable hurricane, hail, and all-weather resistance.
- It also eliminates problems of pest infestation and rot that occur with wood and clay roofing materials.
- Custom cut length to prevent waste.
- Sheds Snow and Ice at high altitudes in winter and is energy efficient in summer.
- Common Use: Roofing solutions in industrial, commercial and domestic applications.
