Jai Pali Kliplock Profile sheets are screwless and can be fixed with specially designed clips, providing a puncture-free roof with concealed fastening. These sheets are water, heat, and fire resistant, ensuring long-lasting performance. The profile is designed to be fixed to roof or wall purlins, combining the strength of steel with smart fluted pans and a lock-action rib design for both strength and aesthetic appeal.
Even on low-pitch roofs as shallow as 2° (1:30), where no end laps are used, the interlocking ribs and concealed fastening guarantee excellent weather resistance. This makes Jai Pali Kliplock Profile especially suited for low-pitch roof applications. The clips hold the roofing sheets firmly, with laps placed just clear of and on the high side of the clip, allowing for thermal expansion without compromising the integrity of the roof.

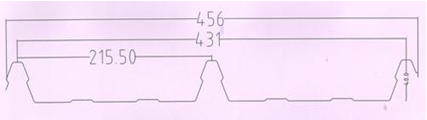

SPECIFICATION:
| Trough Depth | 40mm ± 1mm |
| Pitch Centre to Centre | 215.50mm |
| Supply Width | 456mm |
| Cover Width | 431mm ± 1mm |
| Thickness | 0.4mm to 0.6mm |
| Material | GI, PPGI, Galvalume, PPGAL |
| Yield Strength | 240mpa, 345mpa, 550mpa |
| Paint Coating | Regular Modified Polyester (RMP), Silicon Modified Polyester (SMP) & PVDF Coating |
| Standard Conformance | AS:2728, AS:1397, IS:14246, IS:513, IS:277 |
KEY FEATURES
- Special rib design, making deck a structural member in itself, permitting a more economical use of steel framework.
- Positive side rib interlocking with concealed klips to give more strength.
- Long deck lengths to cover maximum area.
- Custom cut lengths to prevent waste.
- High performance sheeting with excellent corrosion resistance.
- Design freedom.
- High water carrying capacity due to valley depth.
- Concealed Fastening- no fasteners penetrate the profile resulting increasing the life of sheet.
- High strength excellent structural properties.
- Common Use: Roofing .solutions in industrial, commercial, and domestic applications.
